Ask three energy analysts for “the EROI of solar” and you will get three different numbers, and the disagreement is not sloppiness — it is because EROI is not a fact about a technology, it is the output of a boundary decision the analyst made before touching a single number. The same is true of a grid’s frequency-reserve requirement and of a life-cycle assessment’s carbon-per-kilowatt-hour figure. Each of these three quantities — energy return on investment, frequency-regulation reserve, and life-cycle material throughput — is genuinely load-bearing in how civilization plans its energy and material systems, and each is produced by a specific, checkable method rather than a single formula you can look up once. This guide walks through how a practitioner actually does each calculation: what goes inside the boundary, what stays outside it, where the uncertainty actually lives, and where a plausible-sounding number is actually a scenario or a vendor claim wearing the clothes of a measurement.
1. EROI: the ratio that depends entirely on where you draw the line
Energy return on investment is defined simply — energy delivered divided by energy spent to deliver it — but the entire discipline of EROI analysis is about system-boundary accounting, because the ratio can be made to say almost anything depending on what counts as “spent” [1]. Hall, Balogh, and Murphy’s foundational treatment frames EROI as a biophysical accounting concept precisely because energy inputs recur at every level of an economy — extraction, processing, transport, financing, labor, decommissioning — and a study that stops counting too early will report a number several times higher than one that keeps counting.
The standard boundary levels, from narrowest to widest:
- Direct energy only — the fuel or electricity consumed on-site by extraction and generation equipment. This is the cheapest to compute and the most commonly quoted, and it is also the boundary most likely to make a technology look better than a fuller accounting would.
- Direct plus indirect energy — adds the energy embodied in manufacturing the equipment itself: the steel in a wind turbine tower, the silicon and aluminum in a photovoltaic module, the concrete in a dam. Weißbach and colleagues’ comparative EROI study applies this boundary consistently across wind, solar thermal, photovoltaic, hydro, gas, biogas, coal, and nuclear plants using an exergy-based accounting so that plants of very different physical form can be compared on one basis [3].
- Extended EROI — further adds energy costs of the labor, finance, and government services that make extraction and generation possible at all — a boundary that is analytically defensible but rarely used because the required labor-and-services energy intensity data is scarce and contested [2].
- Societal or “point of use” EROI — the widest boundary, extending the calculation past the power plant fence to the buffering, transmission, and storage a fuel or generation source requires to be delivered as usable, dispatchable electricity to an end user.
None of these boundaries is “the” correct one. What is a methodological requirement, not a stylistic preference, is that a published EROI figure state which boundary it used — Hall, Balogh, and Murphy’s central argument is that most of the historical disagreement in the EROI literature evaporates once boundaries are made explicit and consistent [1].
Worked walkthrough: computing an extended-boundary EROI for one photovoltaic installation
A practitioner building a direct-plus-indirect EROI for a utility-scale solar array works through five steps, and the work is genuinely accounting, not modeling:
Step 1 — Define the functional unit and boundary. State explicitly: one megawatt-hour of alternating-current electricity delivered to the grid interconnection point, over the plant’s full operating lifetime, counting cradle-to-grave embodied energy in modules, inverters, mounting structure, and site civil works, but excluding downstream transmission losses (which belong to the grid study, not the plant study).
Step 2 — Tally the denominator (energy invested). This means going to primary literature for embodied-energy intensities per kilogram of silicon, aluminum, steel, and glass, multiplying by the bill of materials for the actual module and mounting-structure design, and adding manufacturing process energy, site preparation, and end-of-life decommissioning energy. The NREL harmonization project exists precisely because published embodied-energy and life-cycle greenhouse-gas numbers for solar and wind vary by an order of magnitude across studies that use different assumptions for capacity factor, operating lifetime, and system boundary — harmonizing more than 2,100 published life-cycle studies down to a consistent set of assumptions (a 30% capacity factor for land-based wind and a fixed 20-year turbine lifetime, for example) in order to make cross-study comparison meaningful at all [4].
Step 3 — Tally the numerator (energy delivered). Multiply the array’s nameplate capacity by its measured capacity factor and operating lifetime — real generation data, not a nameplate assumption, because the gap between nameplate and delivered energy is exactly where an EROI calculation is most often gamed upward.
Step 4 — State the ratio, with its boundary, alongside comparators computed the same way. A direct-plus-indirect EROI for solar PV in the 10–20 range, computed consistently with the same boundary applied to gas, coal, hydro, and nuclear, is analytically meaningful; a single unscoped number pulled from a table without knowing which of the four boundary levels above it used is not, and should be treated by a reader as unverifiable.
Step 5 — Report uncertainty as a range, not a point. Solar irradiance, module degradation rate, and inverter replacement schedule all vary regionally and technologically enough that a defensible EROI is reported as a range attached to explicit assumptions, not a single decimal.
Fact vs. analytical convention, stated plainly: that a photovoltaic module requires energy to manufacture is a fact. That “direct plus indirect” is the correct boundary to use for a societal energy-planning decision is an analytical convention — a defensible one, but a choice, not a physical law. Two analysts using the extended or societal boundaries above would reasonably report a different number for the same array, and neither would be wrong, provided both stated their boundary.
2. Designing a grid frequency-regulation study
A power grid has to keep supply and demand in near-instantaneous balance, because unlike almost every other commodity, electricity cannot be stored in the wires — any mismatch between generation and load shows up immediately as a deviation in system frequency away from its nominal value (60 Hz in North America, 50 Hz in most of the rest of the world). Designing the reserve that catches that deviation before it cascades into a blackout is one of the most concretely engineered problems in energy infrastructure, and it is governed in North America by a specific reliability standard rather than by informal practice.
The mechanism, in order of response time:

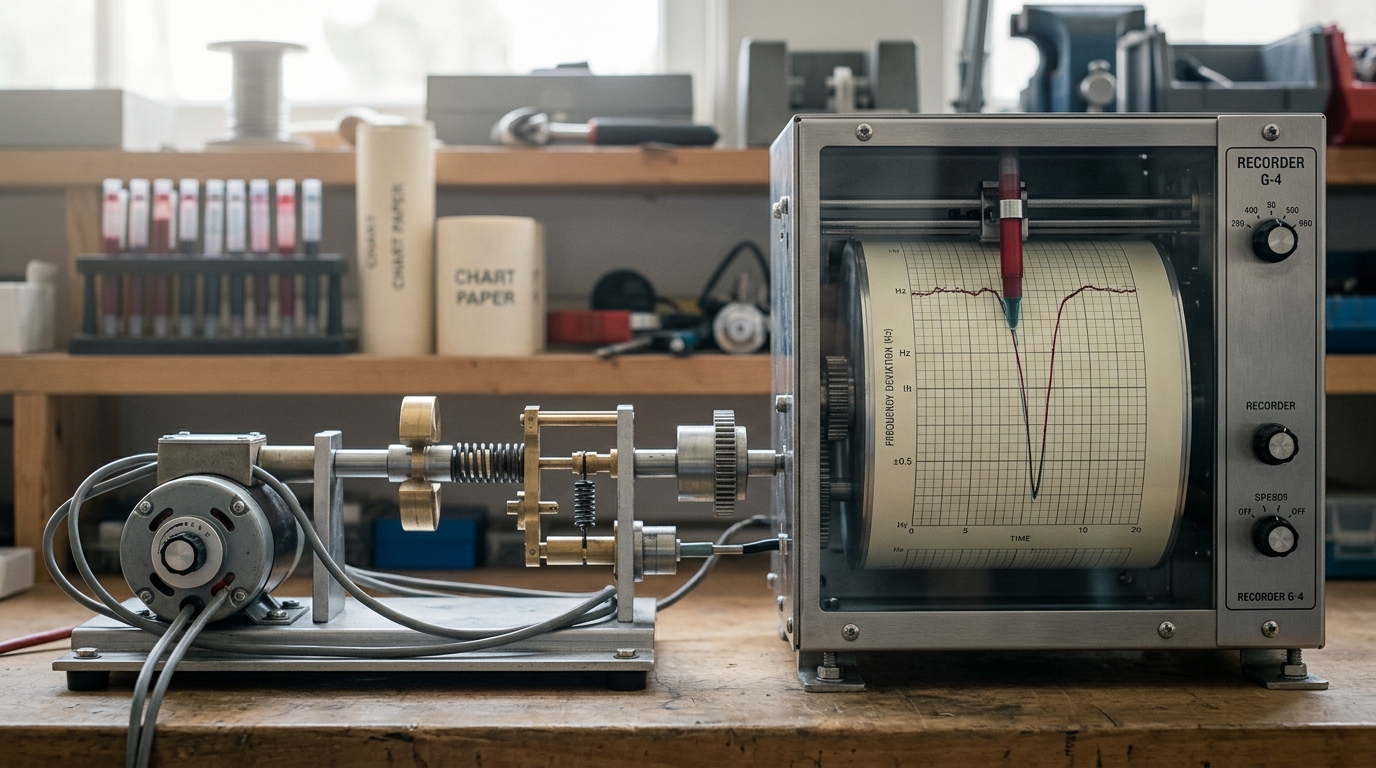

- Primary frequency response (seconds). Generator governors — the mechanical or digital speed-control systems on spinning turbines — sense a frequency deviation directly at the shaft and automatically adjust fuel or steam input within seconds, without any instruction from a control room. This is the fastest and most automatic layer, and it is a physical property of how a governor is tuned, not a market product bought and sold in real time.
- Secondary frequency response / automatic generation control (tens of seconds to minutes). A balancing authority’s control system dispatches instructions to specific generating units to restore frequency to exactly nominal and to correct any net interchange error with neighboring balancing areas.
- Tertiary reserve (minutes to hours). Reserve capacity brought online or redispatched to replace the units used for primary and secondary response, restoring headroom for the next disturbance.
The standard governing the first layer in North America is NERC’s BAL-003, which sets an Interconnection Frequency Response Obligation — a quantitative target, computed from each interconnection’s historical worst-case credible contingency (the largest simultaneous loss of generation the system has experienced or must be prepared for), for how much frequency response the interconnection’s generating fleet collectively must provide [6]. The standard was developed because frequency response had been observed to decline over time as more of the generating fleet shifted toward resources with weaker or absent governor response, and a target was needed to arrest that decline before a contingency event produced a frequency drop severe enough to trigger automatic under-frequency load shedding — the last-resort mechanism that deliberately drops customer load to stop a runaway frequency collapse.
Worked walkthrough: sizing a balancing authority’s reserve requirement
Step 1 — Identify the design contingency. Pull the historical record of simultaneous generation losses (a large plant trip, a major transmission fault taking multiple units offline at once) and identify the largest credible single event — NERC’s standard specifically anchors this to the largest N-2 category event on record for most interconnections.
Step 2 — Compute the frequency nadir the system can tolerate. This is set by the under-frequency load-shedding relay settings already deployed across the interconnection — the reserve must be sized so that the design contingency’s frequency dip does not reach the first load-shedding threshold.
Step 3 — Back-calculate the required frequency response, in megawatts per 0.1 Hz of deviation. This is the interconnection’s frequency bias setting, and it translates the “how far can frequency fall” answer from Step 2 into “how much governor response must be online at all times” — the actual reserve requirement.
Step 4 — Audit compliance using real event data, not simulation alone. Balancing authorities are required to demonstrate, using their performance during actual historical frequency events, that their fleet’s real measured response met the obligation — a retrospective check against measured phasor data, not a paper calculation alone.
Where this becomes a live policy question: as thermal generators with strong mechanical governors retire and are replaced by wind and solar resources that do not inherently provide governor-style frequency response (because their electrical output is decoupled from grid frequency by power electronics), an analytically real question opens about whether the historical frequency-response obligation framework, built around synchronous machines, needs a structurally different replacement — battery storage and grid-forming inverters can provide fast frequency response, but doing so at the scale the retiring fleet provided is an engineering and cost question, not a settled fact. Framed as a prediction: analysts expect frequency-response requirements to increasingly be met by fast-acting inverter-based resources rather than governor response over the next decade, conditional on continued renewable buildout and the economics of grid-forming inverter retrofits; the disconfirming observation would be a jurisdiction sustaining reliable frequency performance through synchronous-condenser or other purely mechanical solutions at lower cost than inverter-based alternatives.
3. Running a material-throughput life cycle assessment for one piece of infrastructure
A life cycle assessment (LCA) is not a single number, and treating “the carbon footprint” of a wind turbine or a data center as though it were one fixed figure misunderstands what the method actually produces. LCA is standardized internationally by ISO 14040 and ISO 14044, which define four required phases — goal and scope definition, life cycle inventory, life cycle impact assessment, and interpretation — and require that every published assessment state its functional unit, system boundary, and allocation method explicitly enough that another analyst could reproduce it [5].
Worked walkthrough: an LCA for one transmission-line upgrade project
Step 1 — Define the functional unit. Not “the transmission line” but something quantified and comparable: one gigawatt-mile of transmission capacity delivered over the asset’s design life, including planned reconductoring and tower reinforcement.
Step 2 — Set the system boundary. Cradle-to-grave: raw ore extraction and smelting for the aluminum conductor and steel towers, manufacturing, transport to site, construction (including any access-road building), operational losses over the design life, and end-of-life recycling or disposal. A narrower cradle-to-gate boundary (stopping at the factory door) is sometimes used for material-supplier comparisons, but it is not comparable to a cradle-to-grave study, and conflating the two is a common and consequential error.
Step 3 — Build the material inventory. This is where the “material coupon” work is genuinely physical: for each material in the bill of materials — aluminum conductor, galvanized steel lattice, concrete foundations, insulator ceramics — the analyst needs an embodied-energy and embodied-emissions intensity per kilogram, sourced from a consistent database (the NREL harmonization project and the IPCC’s Working Group III Annex III both compile and reconcile exactly this kind of technology-specific intensity data so that studies using them are comparable to one another rather than each inventing its own baseline) [4] [9].
Step 4 — Allocate impacts among co-products. Steel and aluminum production yields co-products (slag, scrap credits) whose environmental burden must be allocated by mass, economic value, or system expansion — ISO 14044 requires the chosen allocation method to be stated because different reasonable choices materially change the final result, exactly as in the physical cutting-diagram allocation of one rolled beam among the parts actually machined from it.
Step 5 — Run impact assessment and interpret, including sensitivity. Convert the inventory into impact categories (global warming potential, resource depletion, and others as scoped), then test how sensitive the headline result is to the assumptions that are least certain — commonly the assumed design life and the end-of-life recycling rate, both of which can shift a result by tens of percent.
Vendor claim vs. verified LCA, stated explicitly: a manufacturer’s marketing claim that its product is “net carbon neutral over its lifetime” is a vendor assertion until it cites a specific LCA conducted to ISO 14040/14044 with a stated functional unit, boundary, and allocation method open to independent review; absent that citation, the claim should be reported as unverified, not repeated as fact.
4. Why these three methods have to be read together, and why none substitutes for the others
It is tempting to reduce all of this to a single number — “solar’s EROI is X, so it’s obviously the right choice” — but each method answers a genuinely different question, and none of the three tells you what the others do. A high direct-plus-indirect EROI says a generation source returns much more energy than it consumes to build and run; it says nothing about whether that source can be balanced second-to-second on a real grid, which is the frequency-regulation question, and nothing about the total material throughput — the tonnage of steel, concrete, and copper — required to deploy it at the scale a growing economy needs, which is the LCA and materials-flow question. The IEA’s most recent global outlook projects electricity demand rising sharply through 2035, driven by data centers, electrified transport, and cooling load, with the renewables share of generation more than doubling by 2050 — a real, sourced projection, not a settled fact, since it is conditional on the policy and investment pathway the report labels its Stated Policies Scenario [7]. Meeting that demand growth reliably requires all three kinds of analysis simultaneously: EROI-consistent generation choices, frequency-regulation reserves engineered for a fleet with a different mix of synchronous and inverter-based resources, and life-cycle-assessed material supply chains sized for the actual tonnage the buildout requires — reflected in the U.S. record electricity generation reported for 2025, which is itself a measured fact, not a projection [8].
A disconfirmation condition, stated as the guide’s own methodological claim: if a future authoritative EROI, grid-reliability, or LCA study is published that reduces any of these three questions to a single portable number applicable across technologies and boundaries without qualification, and that number holds up under independent boundary-consistent replication, the argument of this section — that the three methods are irreducibly distinct and boundary-dependent — would be falsified. No such study currently exists in the peer-reviewed literature surveyed here.
Practitioner checklist
For any energy-systems claim encountered in the wild — in a vendor brief, a policy document, or a headline — the working questions are the same three, regardless of which of the methods above produced the number:
- What is the stated boundary? An EROI, an LCA, or a reserve-sizing figure without a stated boundary, functional unit, or design contingency is not comparable to any other figure and should not be treated as if it were.
- Is this a measurement, a harmonized estimate, or a scenario? Real generation and frequency-event data are measurements; harmonized embodied-energy intensities are estimates reconciled across many studies; anything with a named scenario label (IEA’s Stated Policies Scenario, for instance) is conditional on a stated policy pathway and should be reported as such [7].
- Does the source allow independent replication? ISO 14040/14044 and NERC’s BAL-003 both exist because replicability was the actual failure mode being fixed — inconsistent boundaries and unstated assumptions producing numbers that could not be checked or compared [5] [6].
None of this makes energy-systems analysis harder to use — it makes it usable at all. A number with a stated boundary can be checked, replicated, and argued with; a number without one can only be repeated.
